Product Categories / Emergency Ballasts / LALDR-14-N

Catalog Sheet

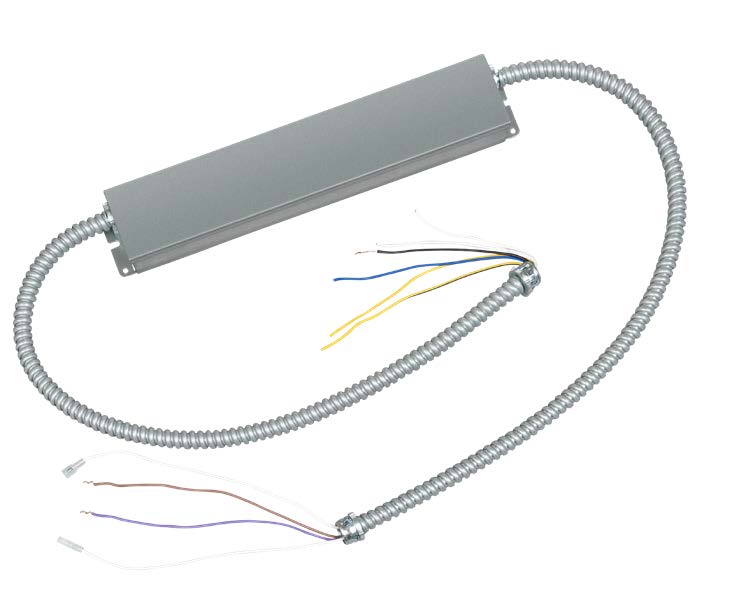

[NEW] LALDR-14-N

Convert new or existing LED fixtures into emergency lighting units with constant power emergency LED drivers

Key benefits:

Galvanized steel construction
LED illuminated remote test switch
Suitable for installation on top or remotely (up to 20 feet)
LED lamps with 20VDC to 50VDC operating voltage
Can be wired for normally-on, normally-off or switched loads
Lumen output depends on LED light source efficacy (lumens/watts)
Universal 120/277, 50/60Hz input
Provides 90 minutes of emergency operation
Surge protection: per C62.41 (TVS)
Output classification: Class 2 compliant
Output and input overcurrent protection
Constant power supply in emergency mode
Long-life, lithium battery; 24-hour battery recharge time
Damp location listed
UL classified for field 50°F to 122°F
UL 924 approved, NFPA 101 Life Safety code, NEC, and BC-California Energy Commission Title 20
Unit has a three year warranty(subject to proper installation and maintenance)
