Photometric Data

SP Remote Series

Typical spacing are based on a 6' wide path and 80-50-20 reflectances
IES FILES
Lamp Part #
BULB SPECIFICATION
Isolines PFD
Cad Feet
Cad inches
Typical spacing 7' mounting 6' wide
Typical spacing 15' mounting 6' wide

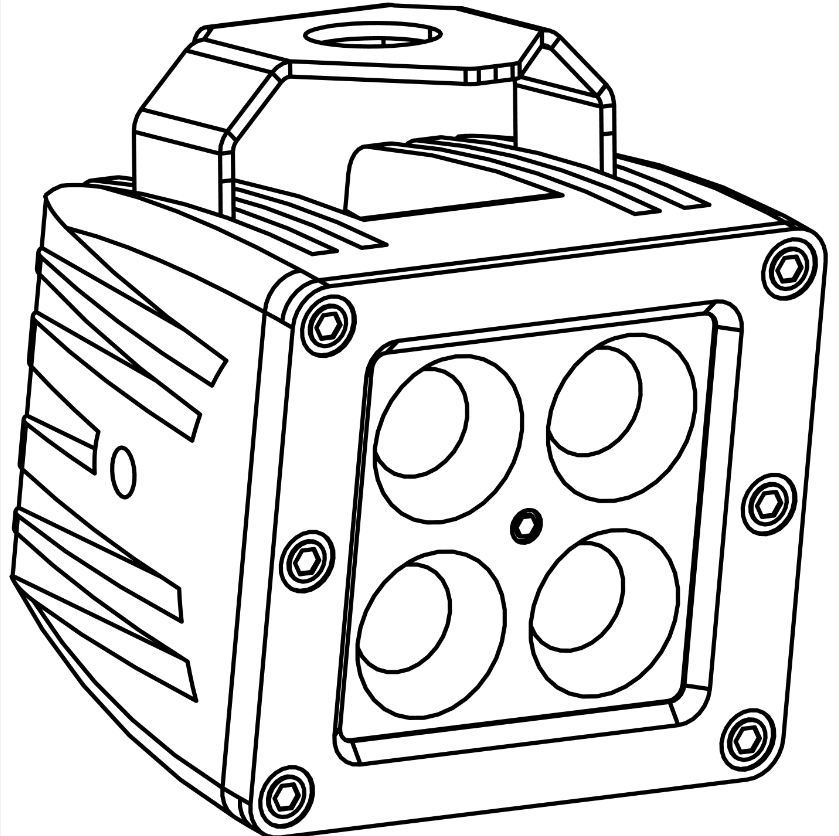

NEMA4X LED 12-24v6w K346C
N.A
12-24V 6W  NEMA-4X HEAD
K346C 7-30.pdf
K346C isoline feet.zip
K346C isoline inches.zip
100'
85'
NEMA4X LED 12-24v10w K429C
N.A
12-24V 10W  NEMA-4X HEAD
K429C 7-30.pdf
K429C isoline feet.zip
K429C isoline inches.zip
146'
133'
NEMA4X Led 12-24v15w K430C
N.A
12-24V 15W  NEMA-4X HEAD
K430C 7-30.pdf
K430C isoline feet.zip
K430C isoline inches.zip
185'
153'
